2001 Kawasaki KLR 650

Green and Silver

27 December 2004


Click on thumbnail for a larger pic...

on the Stove Prairie Road

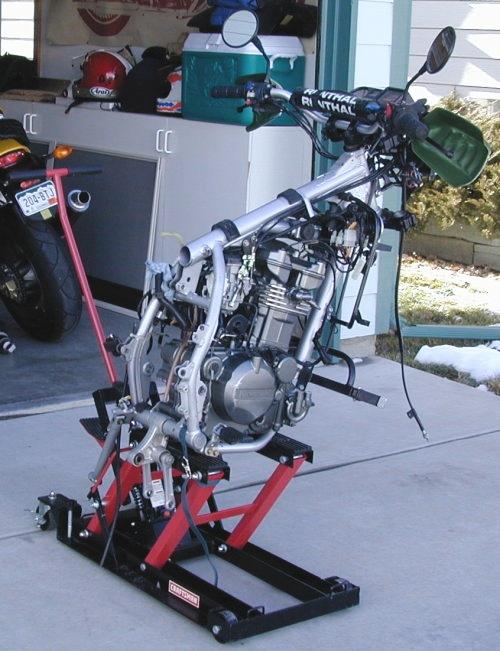

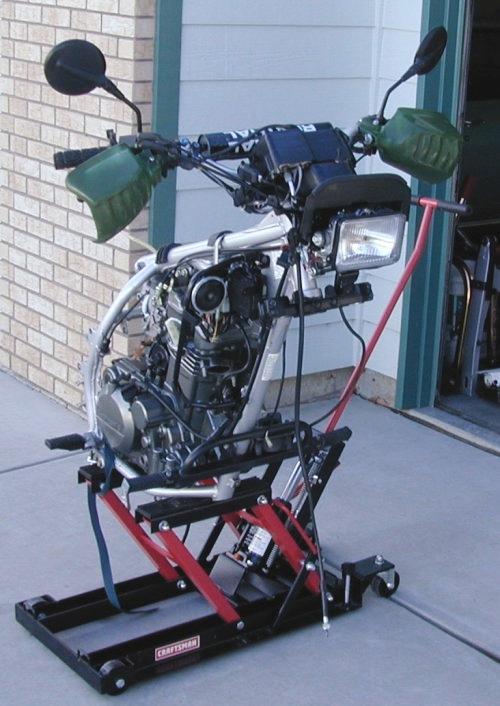

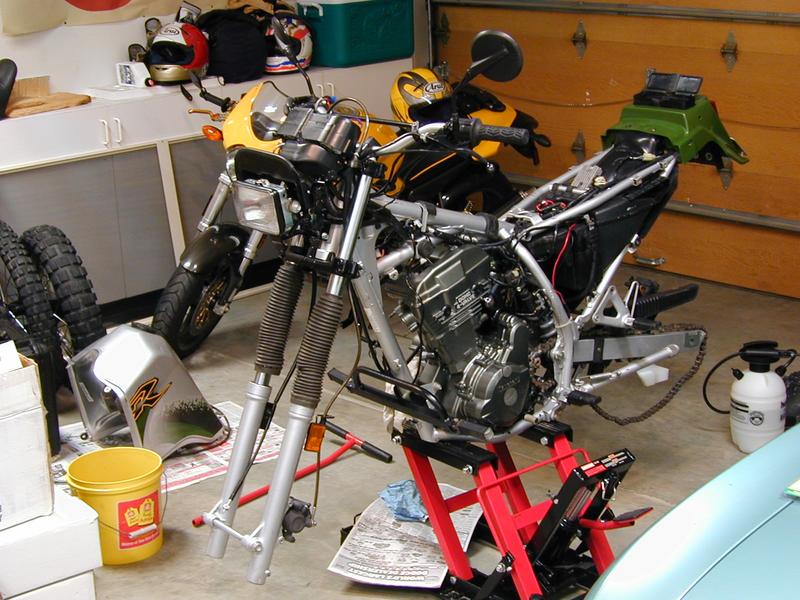

on the bike stand another view

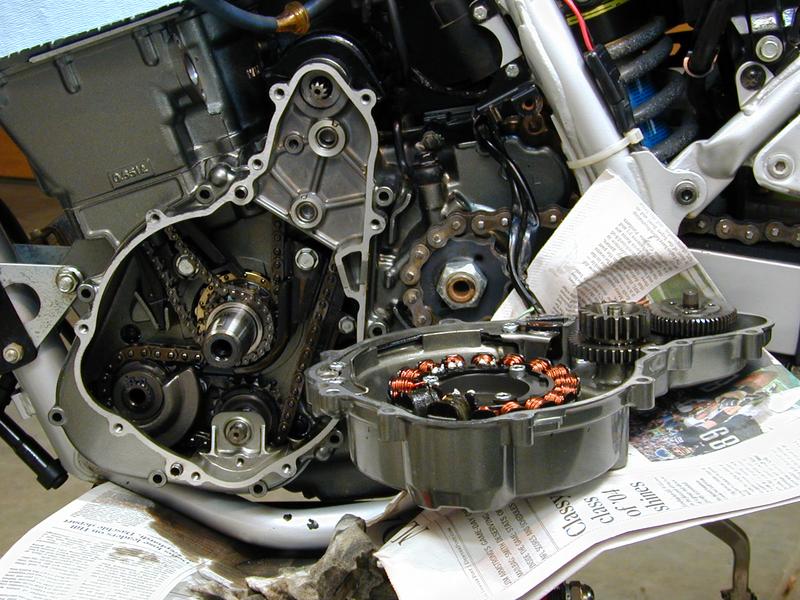

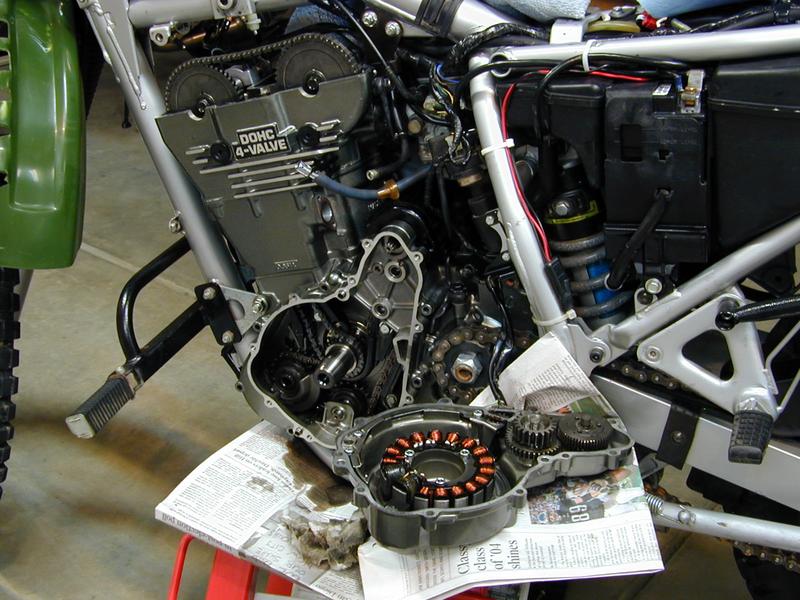

left side of engine with covers removed

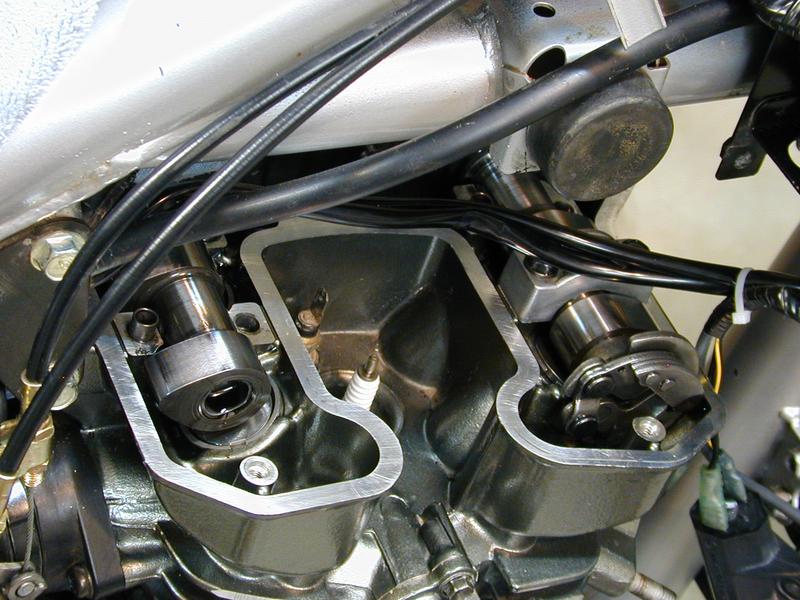

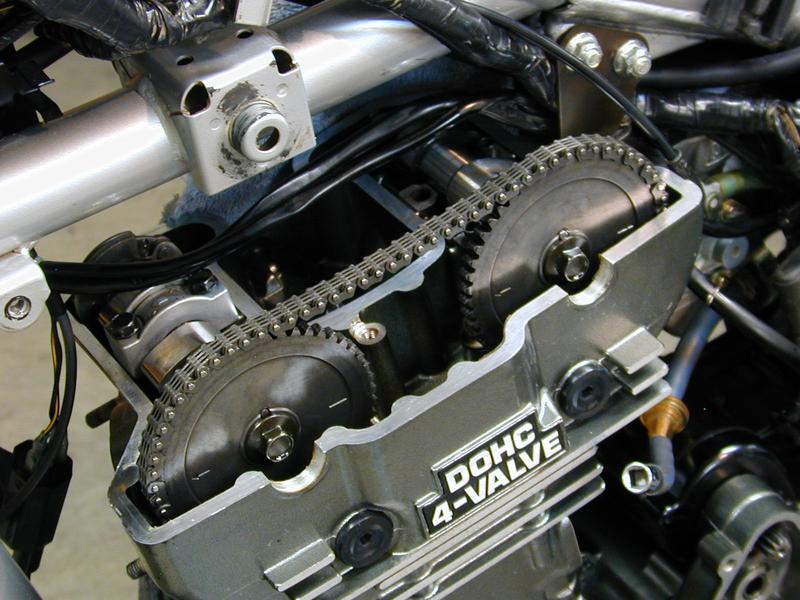

cam drive chain camshafts & followers

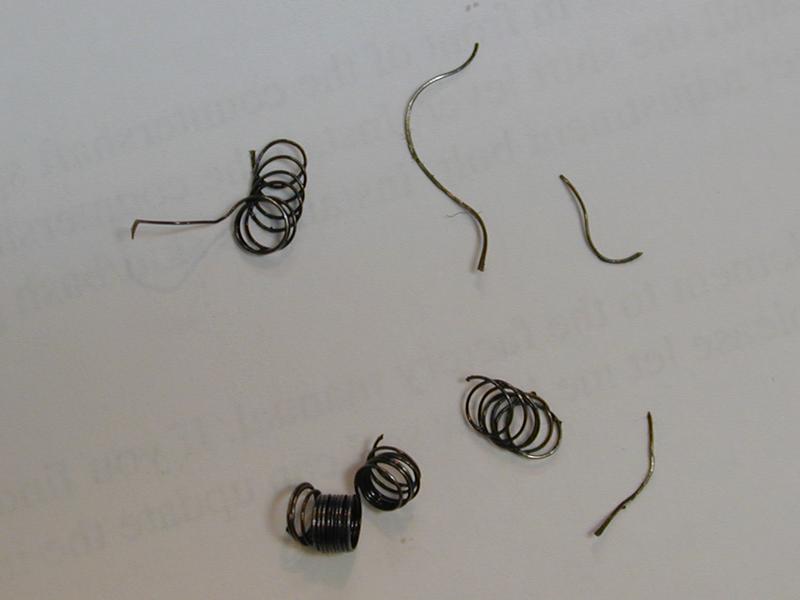

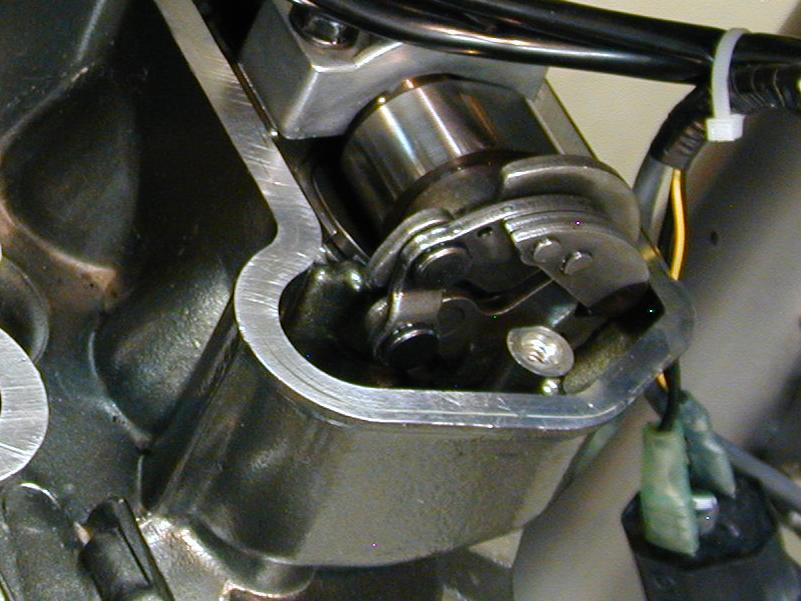

compression release missing spring remnants of CR spring
new 38 mm Eagle Mfg spring

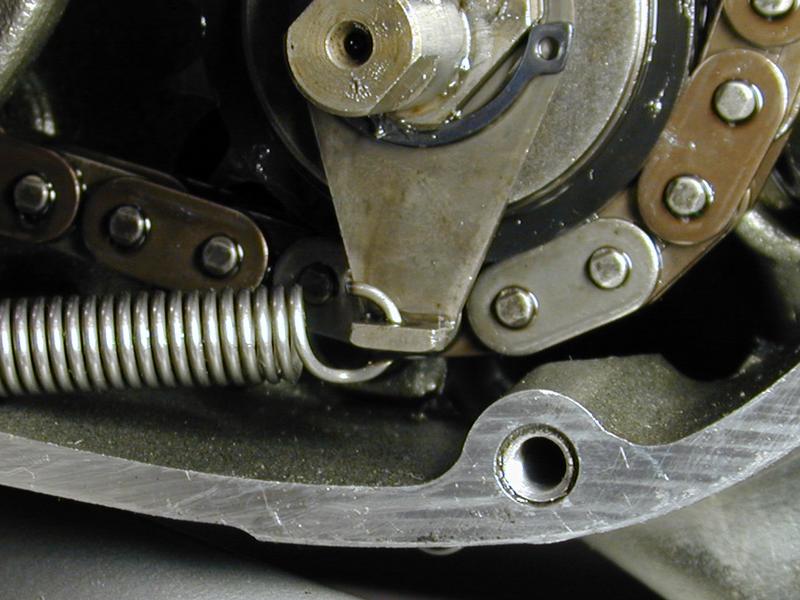

note tiny clearance between the chain and case boss
(less than 1 mm)

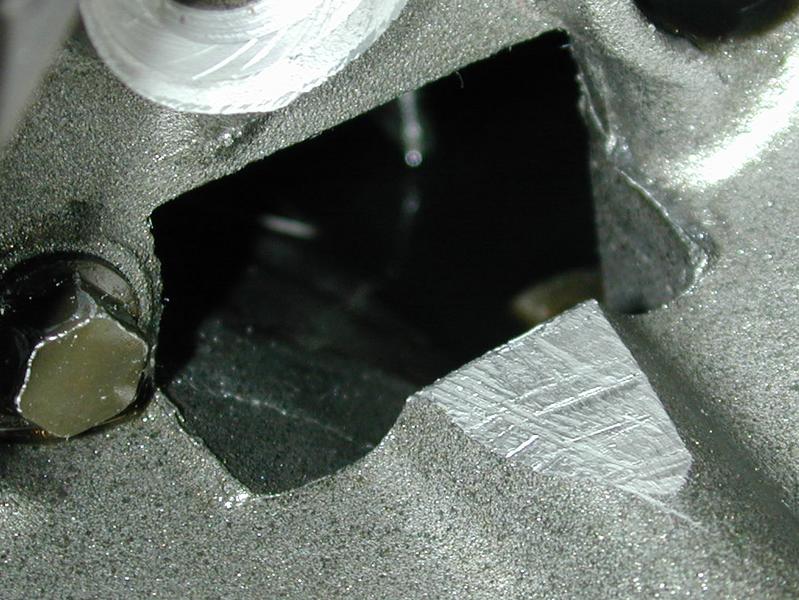

chiseled boss now more than 2 mm clearance

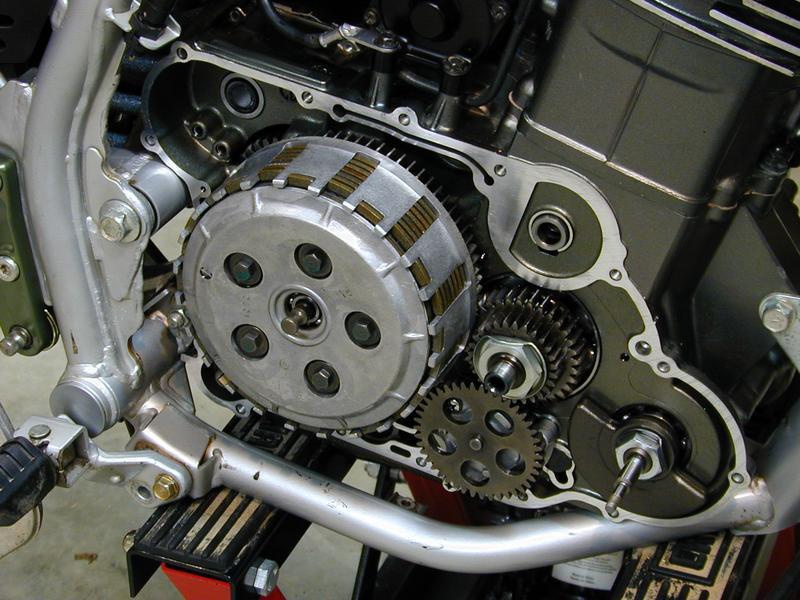

right side of engine going back together
